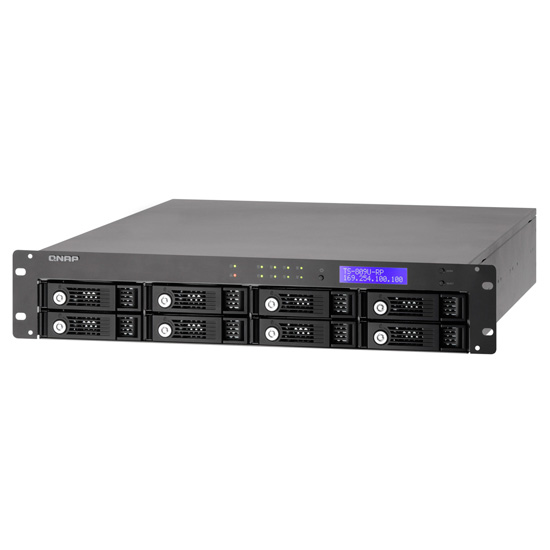

QNAP Turbostation TS-809U-RP (2.8GHz, 2GB)

QNAP TS-809U-RP is the new generation 2U rackmount model of the worldwide award-winning Turbo NAS Series, providing superior performance for massive data sharing, powerful all-in-one business server features, advanced RAID data protection, built-in iSCSI target service, AES 256-bit volume-based encryption, and rock-solid hot-swappable hard drive design for business.

The TS-809U-RP is featured with Intel Core 2 Duo 2.8GHz CPU and 2GB DDRII memory. It supports RAID 0/ 1/ 5/ 6/ 5+Spare, JBOD, Online RAID Capacity Expansion, and Online RAID Level Migration.

The Most Affordable and Flexible iSCSI Solution
The TS-809U-RP can serve as a NAS and an iSCSI target server. The built-in iSCSI target feature provides an affordable IP-SAN (Storage Area Network) alternative for business. You can set up the NAS to expand the storage capacity for existing application servers, such as database server and mail server in an economic way. Moreover, the "Virtual Space Allocation" (Thin Provisioning) feature is provided which allows you to flexibly allocate the capacity of iSCSI LUN (Logical Unit Number) at the beginning regardless of the physical volume capacity.

Secure Data Protection by AES 256-bit Volume-based Encryption
The TS-809U-RP's dominant "volume-based encryption" feature secures the server data by AES 256-bit encryption. Even if the hard drives were stolen, there is no need to fear that the confidential data would be leaked since the data can only be accessed by an authorized password.

Versatile Applications for Business and Corporation
The TS-809U-RP supports file sharing across Linux, UNIX, Mac, and Windows platforms. Versatile business are supported, e.g. file server, FTP server with encryption, and printer server, PHP/MySQL supported web server, and encrypted remote replication, Windows AD (Active Directory) SSH login and web page SSL login.

Easy Setup and Low-cost Maintenance
The handy LCD display on the NAS provides a speedy and easy approach to initialize the NAS and set up the RAID configuration without using any computer. The system information and settings are also displayed for easy management. The schedule power on/off feature is available on the NAS for you to flexibly manage the NAS server's up time according to the working hours. Also, Wake on LAN is supported for convenient remote wakeup of the NAS in the local network.

High Performance NAS for Business
Benefits of Dual Gigabit LAN Deployment

Failover
The dual LAN ports can be configured as failover which allows the NAS server to sustain the failure of one network port to provide continuous services.

Load Balancing
The two LAN ports of the NAS can be configured as load balancing mode for bandwidth aggregation to boost the file transfer speed (works with managed Ethernet switch with 802.3ad configured).

Multi-IP Setting
The NAS can be deployed with two IP settings for sharing among different workgroups in two different subnets.

Supports access of multiple IP from different LAN areas

High Reliability, Disaster-proof NAS for Business

DOM Architecture with Embedded Fail-safe Dual OS
All the OS and applications are embedded on the DOM. The NAS allows system booting without accessing the physical disk sectors and that avoids unsuccessful system startup caused by bad block sectors or file errors on the hard drives. Two operating systems are built on the DOM for system booting alternatively upon every system startup. When one fails, the other one will be used to boot up instead, and the failed OS is recoverable from the other healthy OS.

Advanced RAID Management with How-swap Design
The NAS offers advanced RAID 0, 1, 5, 6, 5 + Spare, Single, and JBOD disk configurations. It also supports hot-swap design that a failed drive can be replaced by hot swapping without turning off the server. Besides, the best-in-class RAID on the NAS brings users a higher level of data security by allowing one more hard drive failure than other NAS of the same level.

Online RAID Capacity Expansion
The storage capacity of a RAID configuration can be expanded by replacing the hard drives with larger ones. All the data will be kept and seamlessly moved to the newly installed hard drives. There is no need to turn off the server during the process.

Online RAID Level Migration
You can upgrade the disk configuration to higher RAID level with the data retained. There is no need to turn off the server during the process.

Built-in iSCSI Target Service
The TS-809U-RP can act as a NAS and iSCSI target server at the same time. It provides a cost-efficient iSCSI solution to set up an IP-SAN. You can make use of the built-in iSCSI target service to add up to 8 iSCSI devices. Different iSCSI Target LUNs (Logical Unit Number) can be defined as storage expansion or backup destination of the existing application servers, such as database servers and mail servers.

Furthermore, the "Virtual Space Allocation" (Thin Provisioning) feature is provided which allows you to flexibly allocate the capacity of iSCSI LUN (Logical Unit Number) at the beginning stage without the limitation of the volume space. When the physical storage capacity of the volume is going to be full, you can easily expand the storage capacity by "online RAID capacity expansion", or adjust/ remove the current unused volume space according to the demands.

A.iSCSI Application: Storage expansion for application servers
B.NAS Application: File sharing through SMB/CIFS, AFP and NFS

S.M.A.R.T. & Advanced HDD Health Scanning (HHS)
The NAS supports Hard Disk Drive S.M.A.R.T. (Self-Monitoring Analysis and Reporting Technology) for monitoring the hard drive status. Moreover, the NAS is embedded with HHS Technology which supports disk checking and bad blocks scanning.

Efficient Power Management

Hard Disk Standby
You can configure the hard disks to enter standby mode if there is no disk access within the specified period.

Schedule Power on/ off
The flexible schedule power on/off feature is provided on the NAS for you to manage the NAS server's up time according tothe working hours.
