Caldigit TS5 Plus Thunderbolt Station 5 Plus Space Black (1m)
- 3x Thunderbolt 5 ports
- 10GbE network connection built-in
- 10 USB ports available
- Dual USB controllers support
- 140W power for laptops
€505.79 excl. BTW
Delivery time: ±5 days
in stock: 48 Substantial order? Request a custom quote.
- 3x Thunderbolt 5 ports
- 10GbE network connection built-in
- 10 USB ports available
- Dual USB controllers support
- 140W power for laptops
Productinformatie

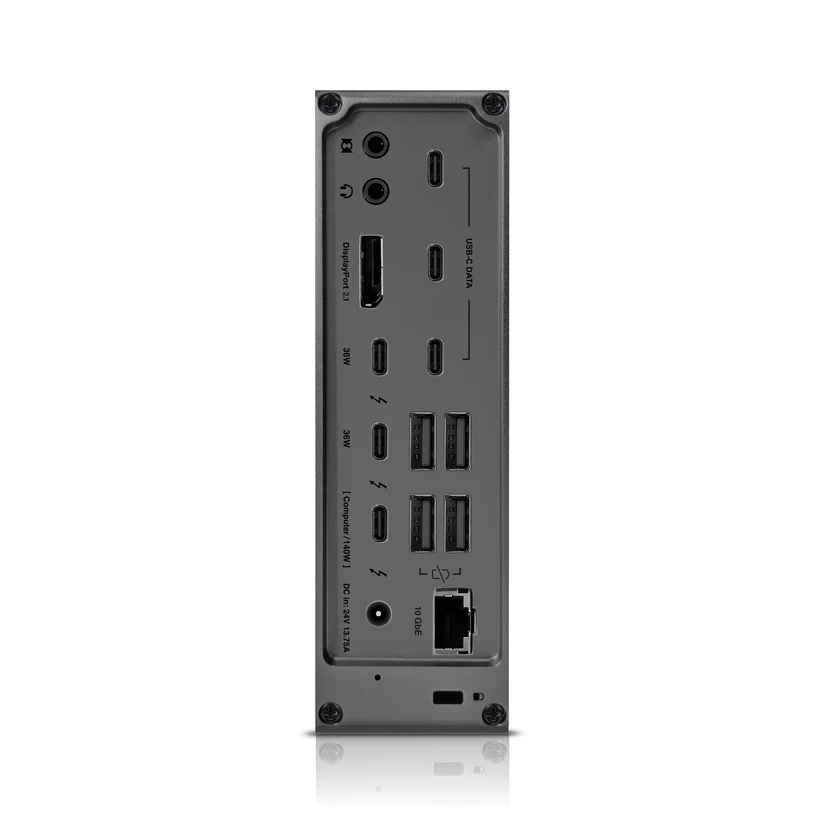

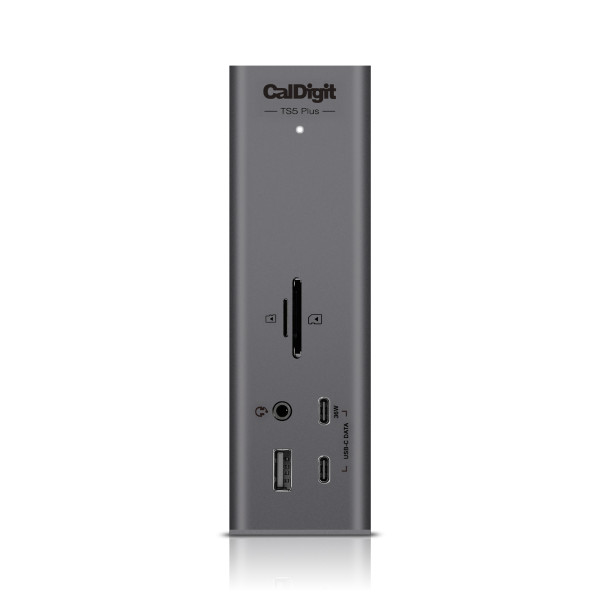

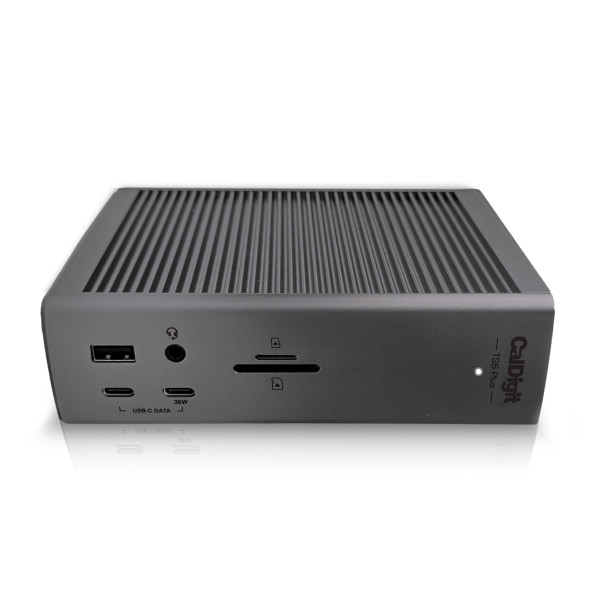

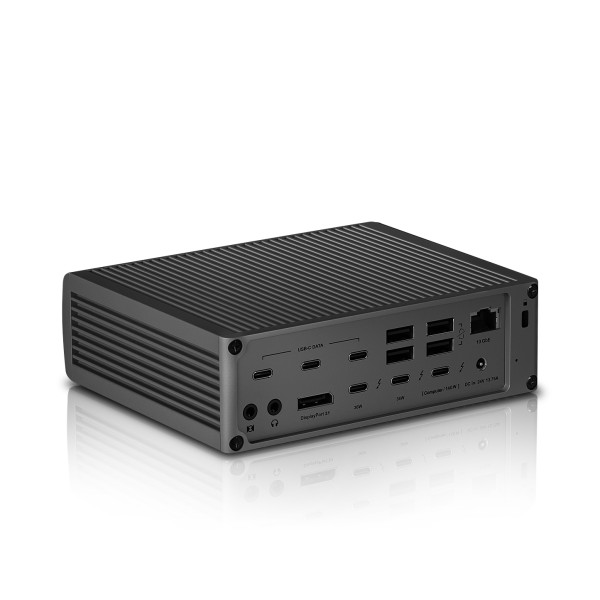

The TS5 Plus is designed with maximum performance and connectivity in mind. It is equipped with powerful features and essential ports to take demanding workflows to the next level.
This dock includes 3x Thunderbolt 5 80Gb/s ports with support for Bandwidth Boost, delivering up to 120Gb/s of bandwidth for even the most demanding displays. The TS5 Plus also features 140W power delivery, making it ideal for high-performance laptops such as the 16” MacBook Pro with M3/M4 Pro or Max chips that require 140W.
The built-in 10 Gigabit Ethernet port is 10X faster than traditional 1GbE and provides professionals with the speed needed for advanced workflows. The 10GbE port is backwards compatible with 1GbE, 2.5GbE, and 5GbE, offering flexibility across a wide range of networks.
The TS5 Plus features 3x 36W USB-C charging ports, including one front-facing USB-C port and two downstream Thunderbolt 5 ports, all capable of powering demanding devices. In total, the dock offers 10x USB ports, including 5x USB-A 10Gb/s ports and 5x USB-C 10Gb/s ports. For the first time on a Thunderbolt dock, Dual USB Controllers provide significantly enhanced USB performance.
When connecting displays to the TS5 Plus, the dock supports up to dual 4K 240Hz displays on Macs that support these resolutions. On supported Windows Thunderbolt 5 PCs, it supports up to triple 4K 144Hz displays.
The TS5 Plus is compatible with Thunderbolt 5, Thunderbolt 4, USB4, and USB4 v2 Macs/PCs, as well as Thunderbolt 3 Macs. For maximum functionality, the TS5 Plus should be used with a Thunderbolt 5 or USB4 v2 host computer.
Specifications
- Power adapter: Thunderbolt, USB voeding
- System requirements: Thunderbolt 3 computers, Thunderbolt 4 computers, USB-C laptop of tablet, Windows 10 of hoger, iPadOS 13.6 of hoger
- Ethernet Speed: 10GbE
- External HDD interface: Thunderbolt 5 , USB-A, USB-C
- External interface: 1 x microSD, 1x SD Card, 3 x Thunderbolt 5, 5 x USB-A, 5 x USB-C, DisplayPort 2.1
- LAN: 1 x 10Gbase-T
- Nr. of HDD slots: 20
- SKU: TS5 Plus
- Warranty: 24 month(s)
Dimensions and weight
- Length: 128
- Height: 155
- Width: 47
- Weight: 0.9
