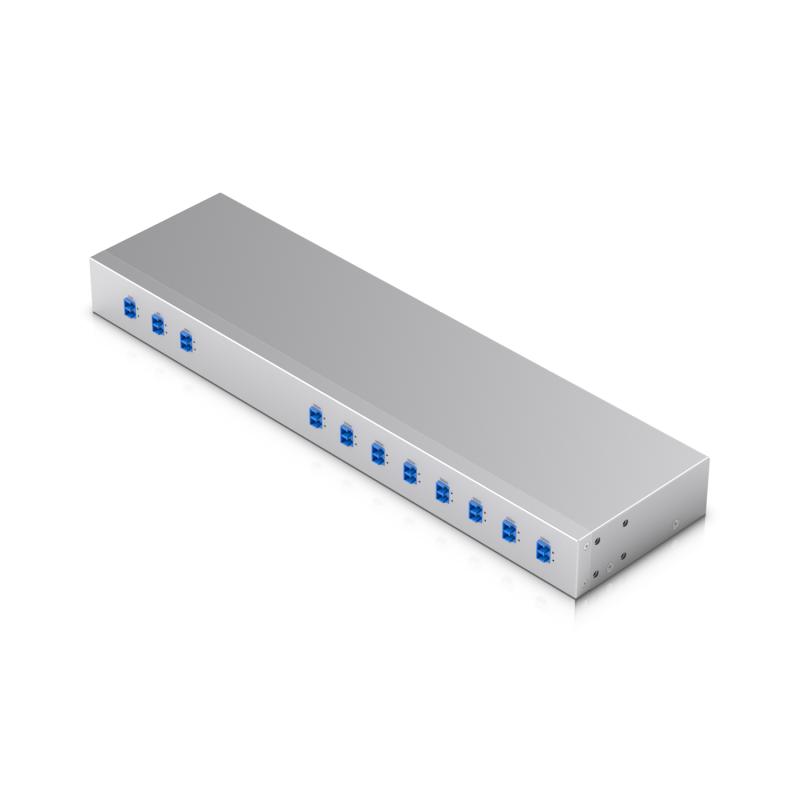

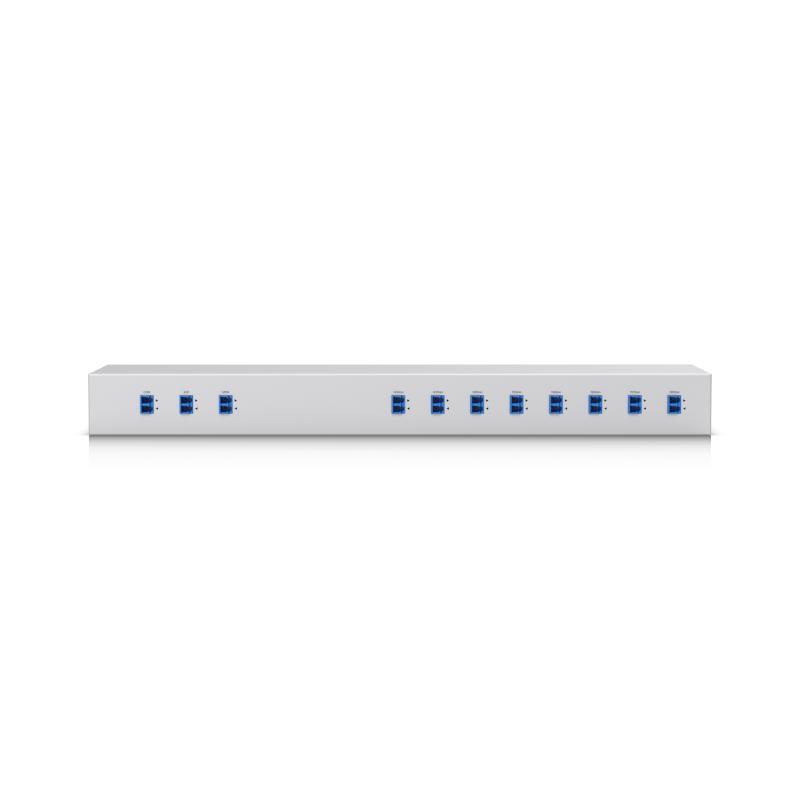

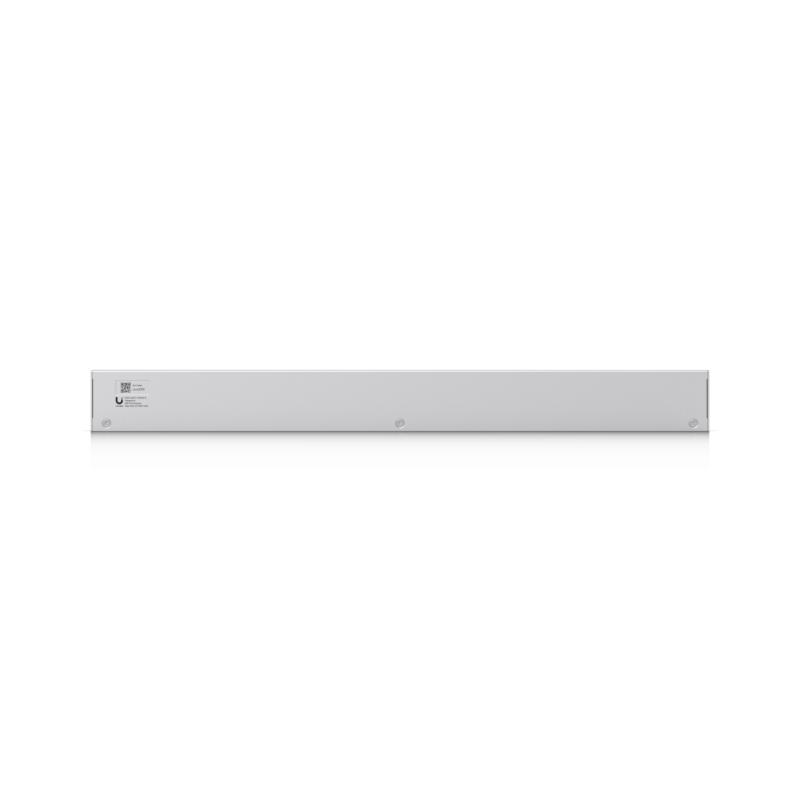

Ubiquiti CWDM Mux Demux 8
- SMF-28e Fiber type
- 1450-1590 nm wave length
- 0.5-1 m cable length
€294.21 excl. BTW
Delivery time: ±3 days
External stock or on order:
5
Substantial order? Request a custom quote.
- SMF-28e Fiber type
- 1450-1590 nm wave length
- 0.5-1 m cable length
truebase-theme.detail.tabsDescription
Rack-mountable 8-channel 1450 to 1590 nm CWDM mux demux designed to increase the capacity of existing fiber optic infrastructure.
The CWDM Mux Demux 8 is a rack-mountable, 8-channel device designed to improve the capacity of your existing fiber optic infrastructure, operating over wavelengths from 1450 to 1590 nm. The CWDM features (8) channel ports for efficient data transmission and a duplex LC UPC communication port for easy connection to another CWDM Mux Demux via single-mode fiber optic cables. The duplex LC UPC monitor port enables seamless monitoring with a power meter or optical spectrum analyzer. Furthermore, the expansion port offers connection to a CWDM Mux Demux 4, allowing more channels to be added for scalable network expansion.
- 8 x 1450 to 1590 nm channel ports
- 1 x Duplex LC UPC communication port for connection to another CWDM Mux Demux 8 with a pair of single-mode fiber optic cables
- 1 x Duplex LC UPC monitor port for seamless observation with a power meter or optical spectrum analyzer
- 1 x Duplex LC UPC expansion port for connection to CWDM Mux Demux 4 to add more channels
Specifications
- Wave Length: 1550 nm RX, 1550 nm TX
- SKU: UACC-CWDM-8
- EAN: 810084694824
Dimensions and weight
- Length: 539
- Height: 187
- Width: 108
- Weight: 1.95
