CalDigit HDPro with eLane-1e/x 1 Port PCI-e of PCI-x host card SALE

Dit product wordt naar keuze met een PCI-e of PCI-x kaart geleverd. Gelieve uw keuze bij het bestellen onder 'opmerkingen' aan te geven.

Als u de versie zonder harddisks bestelt: Gebruik alleen 7200RPM schijven van Seagate of Hitachi. Andere schijven zijn niet getest in dit apparaat.

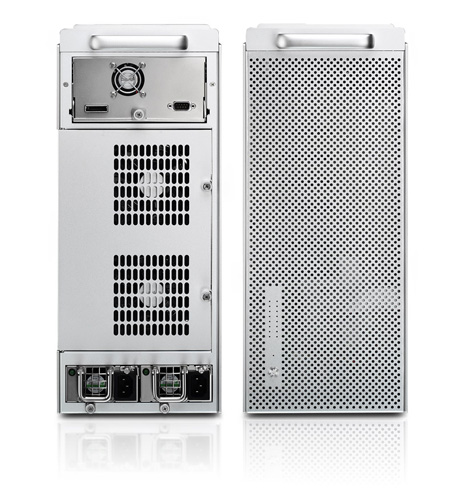

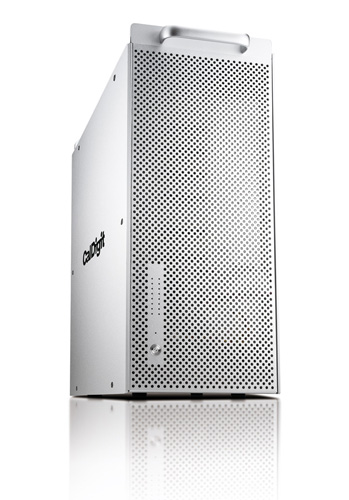

Everything you need in one powerful package, ready to use right out of the box. Setup is a breeze with ultimate reliability built right in.  The 8 drive HDPro comes in either a 2U rack mount or tower.

The CalDigit HDPro's unique architecture combines the best value with the latest technology. The HDPro is compatible with Apple's Mac Pro, G5, G4, and Mac OS X Server, as well as Windows and Linux workstations, in addition to other platforms

When you need a massive amount of storage for your HD projects, large media files, databases, photos, or audio files, the HDPro is the ideal storage solution.

With support for RAID 5, the HDPro features an advanced distributed parity algorithm. Access to data and parity blocks are spread across all 8 drives in the array. To improve the read and write performance, RAID 5 is not limited to a dedicated parity drive, like RAID 3 solutions.

When configured with RAID 6, fault tolerance is maintained by the world class CalDigit RAID engine, ensuring that the parity information is placed on TWO drives. This block of data is completely separate from the drives used to store the data itself. This allows for ultimate protection, allowing up to two drives to fail, with the loss of any data.

Offering RAID 0, 1, 5, 6 and JBOD, the HDPro provides safe and reliable operation, all in one package, and backed by CalDigit's 3 year warranty.

Size and weight

• Height: 15.88 inches
• Width: 7.05 inches
• Depth: 10.24 inches
• Weight: 36.0 lb

In the box

• HDPro Unit x 1
• PCI-E or PCI-X card x 1
• PCI Express Cable X 1
• Drive Trays X 8
• Installation CD
• Power Cord X 1

Storage

• Eight independent 3Gb/s SATA hard drives directly attached to the computer
  board, Maximum 8 TB of storage capacity
  using 7200RPM SATA II 3G diskdrive.
• Eight independent 3Gb/s SATA hard drives
  directly attached to the computer board.
• Maximum 8 TB of storage capacity using
  7200RPM SATA II 3G disk drive.

Controller

• DDR 333 MHz SDRAM with 256 Mb

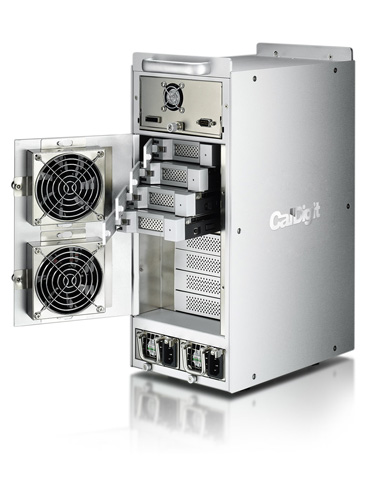

Fan

• Modular design
• Outline Dimension: 92 X 92 X 25 mm
• Rated Voltage: DC 12.0 V
• Rated Current: 0.10 A + 10%
• Rated Power Consumption: 1.20 W + 10%
• Rotational Speed: 1900 R.P.M. +/- 10%
• Max. Airflow: 40.2 CFM (ft3/min)
• Noise Level: 25.0 dB (A)

Power supply

• 200W Cool Swappable Power Supply with Fan.
• Full range: 100~240 VAC (+/- 10% tolerance).
• Frequency: the input frequency range will be
  47hz~63hz.
• Steady-state current: 4~2 amps maximum at
  any low/high range input.

Environmental requirements

• Operation Temperature: 0°C~60°C
• Storage Temperature: -20°C~70°C
• Operation Humidity: 5%~85%,
• Non-condensing
• Storage Humidity: 5%~95%

OS

• Windows XP
• Vista
• Mac OS X
• Linux
