CalDigit HDOne with eLane-1e/x 1 Port PCI-e of PCI-x host card

Dit product wordt naar keuze met een PCI-e of PCI-x kaart geleverd. Gelieve uw keuze bij het bestellen onder 'opmerkingen' aan te geven.

Als u de versie zonder harddisks bestelt: Gebruik alleen 7200RPM schijven van Seagate of Hitachi. Andere schijven zijn niet getest in dit apparaat.

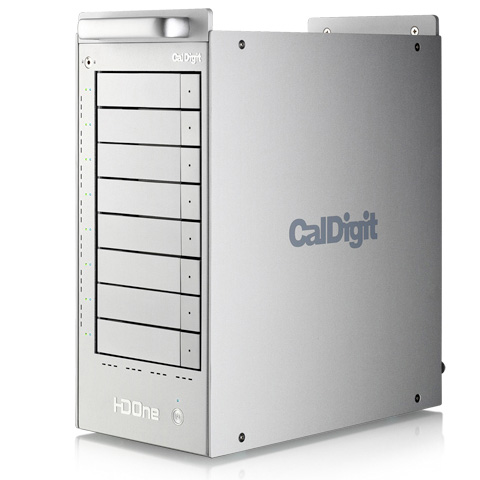

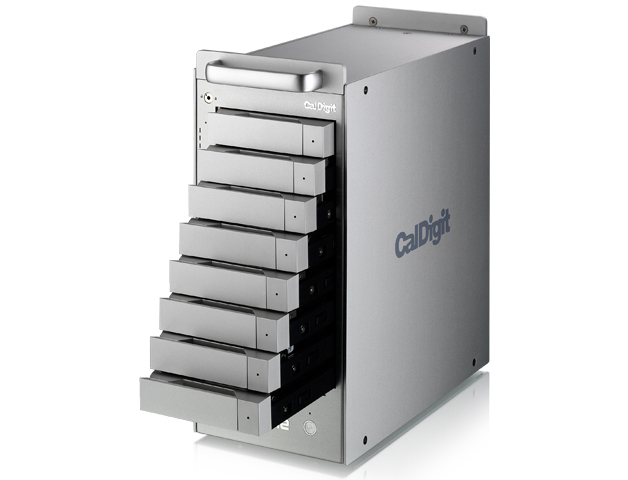

CalDigit’s HDOne makes it easier and more affordable than ever to enter the world of RAID storage solutions. The HDOne comes with 8 drive modules, a CalDigit Controller Card and supports RAID 0, 1, 5, 6 and JBOD. Its unique architecture combines sleek design with the latest technology and is engineered for the modern, digital professional.

Whether you are editing for film or television, managing photographic libraries, composing musical scores, running vast databases, or organizing your mp3 and game libraries, the HDOne gives you high performance data access, secure and reliable storage, with the specs you want at over 400MB/s in RAID Level 5.

The HDOne is a truly cross-platform unit, compatible with Mac OS X, Windows and Linux workstations and is easily expandable as your needs grow.

All CalDigit's products are validated by Matrox Video Group, Blackmagic Design & Media 100 and support a variety of software applications.

Size and weight

• Height: 13.14 inches (33.4 cm)
• Width: 5.98 inches (15.2 cm)
• Depth: 12.83 inches (32.6 cm)
• Weight: 29.98 lb (13.6 kg)

In the box

• HDOne Unit x 1
• PCI-E or PCI-X card x 1
• PCI Express Cable X 1
• Drive Trays X 8
• Installation CD
• Power Cord X 1

Storage

• Eight independent 3Gb/s SATA hard drives
  directly attached to the computer
  board
• Eight independent 3Gb/s SATA hard drives
  directly attached to the computer board.
• Maximum 8 TB of storage capacity using
  7200RPM SATA II 3G disk drive.

Controller

• DDR 333 MHz SDRAM with 256 Mb

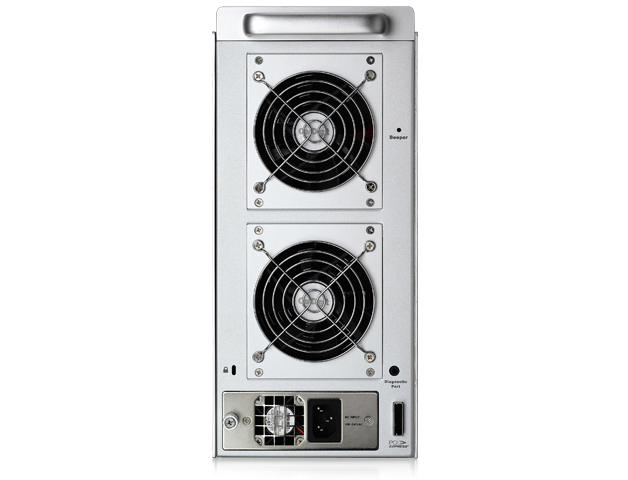

Fan

• Modular design
• Outline Dimension: 92 X 92 X 25 mm
• Rated Voltage: DC 12.0 V
• Rated Current: 0.10 A + 10%
• Rated Power Consumption: 1.20 W + 10%
• Rotational Speed: 1900 R.P.M. +/- 10%
• Max. Airflow: 40.2 CFM (ft3/min)
• Noise Level: 25.0 dB (A)

Power supply

• 200W Cool Swappable Power Supply with Fan.
• Full range: 100~240 VAC (+/- 10% tolerance).
• Frequency: the input frequency range will be
  47hz~63hz.
• Steady-state current: 4~2 amps maximum at
  any low/high range input.

Environmental requirements

• Operation Temperature: 0°C~60°C
• Storage Temperature: -20°C~70°C
• Operation Humidity: 5%~85%,
  Non-condensing
• Storage Humidity: 5%~95%

OS

• Windows XP
• Vista
• Mac OS X
• Linux
