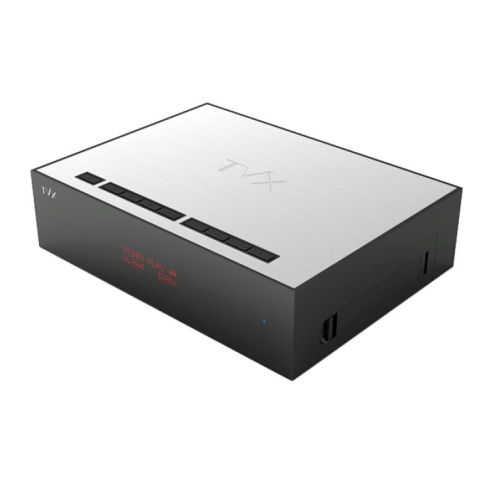

DVico TViX SlimS1

The Best Quality Picture Realization with 1080P and True Cinema Frame-Rate

TViX Slim S1 can show the best quality of picture, which supports native frame rate of movie and also supports 1080P FULL HD and True Cinema Fram-Rate.

Universal Jukebox That Supports Most Of The Media Formats

By supporting superb H264 video compression & MKV container format, you can enjoy full HD videos. On top of this, oncoming HD media backup files as well as DVD backup files are supported. It functions as a universal jukebox that allows you to enjoy videos and music of ultimate quality through full HD picture and next generation HD audio output. It can also playback today’s high-res photos and lossless music files.

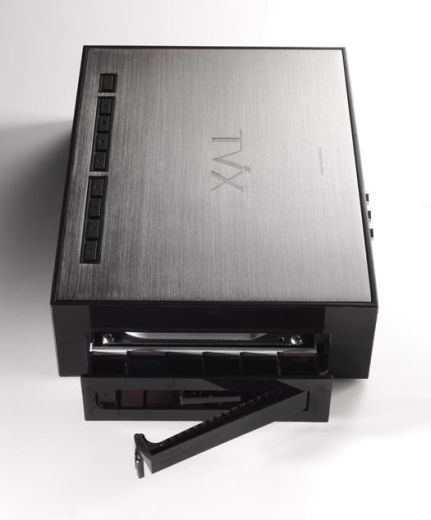

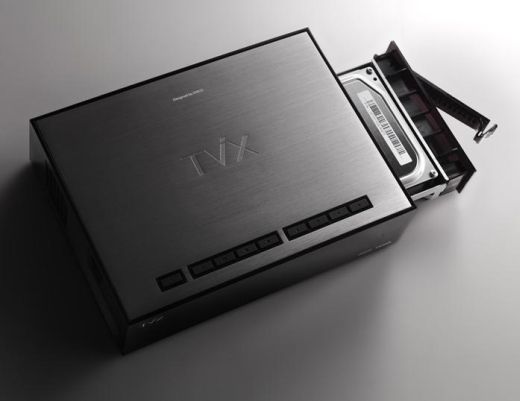

One Click, One Touch HDD Installation
HDD installation is possible to do without using any screws. Simple and easy to equip HDD with one click, and once fixed in the HDD holder can be mounted on the body of the touch. Much of the hard disk holds is very convenient for heavy users.

-One Click, One Touch HDD Installation
- eSATA support

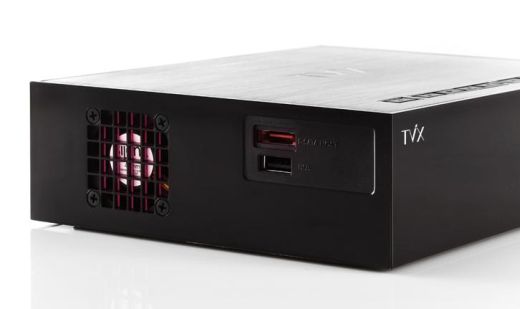

- SlientX Cooling Fan: To minimize noise
- User Selective UI – Changeable UI
- Innovative Cover-Art User Interface
- True Cinema (23.976 Hz) Frame-Rate Support
- Auto Tinted Subtitle
- Next-generation HD-Audio Pass-thru
- Lossless Music File Support (APE/FLAC+CUE/WAV)

Specs

Main Chipset RTD1283DD+ 400Mhz processor
VFD Display 7 Alpha-Numeric Character, 5 Digit Numeric Display

Video

Format: .MKV, .mpg, .avi, .wmv, .divx, .vob, .tp, .ts, .trp, .dat, .iso, .ifo, .m2t, .m2ts, .mov, .flv
Codec: MPEG 1/2/4, AVI, XVID,WMV9(MP@HL),H.264( MP@HL4.1),VC-1( AP@L3), RealVideo 8/9/10
Resolutions up to 1920*1080P

Audio

FLAC, DTS-Wav, MP3, WMA, WMA Pro, AAC, Ogg, Dolby Digital , WAV DTS Pass Through and Down Mixing


JPG, JPEG, BMP, PNG, GIF, TIF

Connectivity

USB 2.0 Host 2 Ports( USB1/USB2 : 5V , 500 mA max), USB 2.0 Target 1 Port, Wired LAN, wireless LAN(Optional), e-SATA HOST
Video out HDMI 1.3, Component, Composite
Audio out Digital : Coaxial, Optical , Analog: Stereo
Hard Disk NTFS, FAT32 (3.5” S-ATA HDD, supports S- ATA 1,2)

Subtitle

smi, smil, sub, sub/idx, srt, .ssa, .ass

Cooling FAN 40mm Brushless FAN, Temperature Sensing, Variable Speed
Memory 256M byte
Power DC 12V adaptor
Size 215 x 160 x 55 (mm)
