ICY BOX

ICY BOX IB-U31-02

Productinformatie

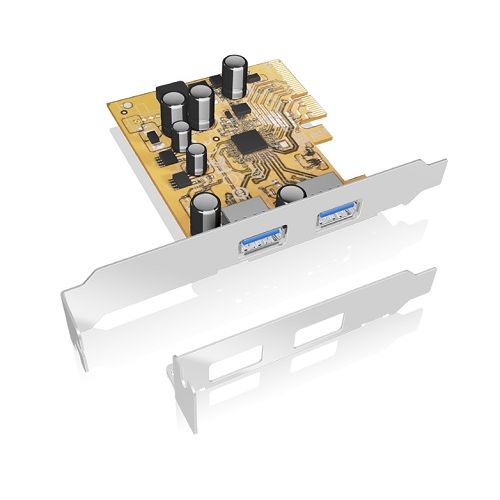

De IB-U31-02 is een dual-port Super-Speed USB 3.1 PCI Express Add-on-kaart, en het is compatible met de PCI Express Generation 2 (Dual-lane x2) specificatie voor host-pc-systemen. De IB-U31-02 werkt met elke PCIe x4, x8 en x16 slot met Generation 2 en maakt de overdracht-snelheden tot 10 Gbit/s.

[[more]]

IB-U31-02 is a dual-port Super-Speed USB 3.1 PCI Express Add-on card, and it’s compliant with the PCI Express Generation 2 (Dual-lane x2) specification for host PC systems. The IB-U31-02 works with any PCIe x4, x8 and x16 slot with Generation 2 and enables the ultimate-speed transfer rates of up to 10 Gbit/s — twice as fast USB 3.0.

USB 3.1 Performance

In order to get USB 3.1 SuperSpeed+ performance, please use PCI Express Generation 2 slot for card installation. To satisfy USB 3.1, 10 Gbit/s SuperSpeed+ highest performance, ICY BOX IB-U31-02 adopts the PCIe Gen2 / x2 (10 Gbit/s) interface connector design. User has to plug IB-U31-02 add-on card into PCIe x16 (or x4 above) slot on the mainboard. Due to expansion slot mechanical limitation, this card can NOT be plugged into PCIe x1 slot. Please double-check your PC system for detailed information.

Specificaties
Beknopte specificaties
