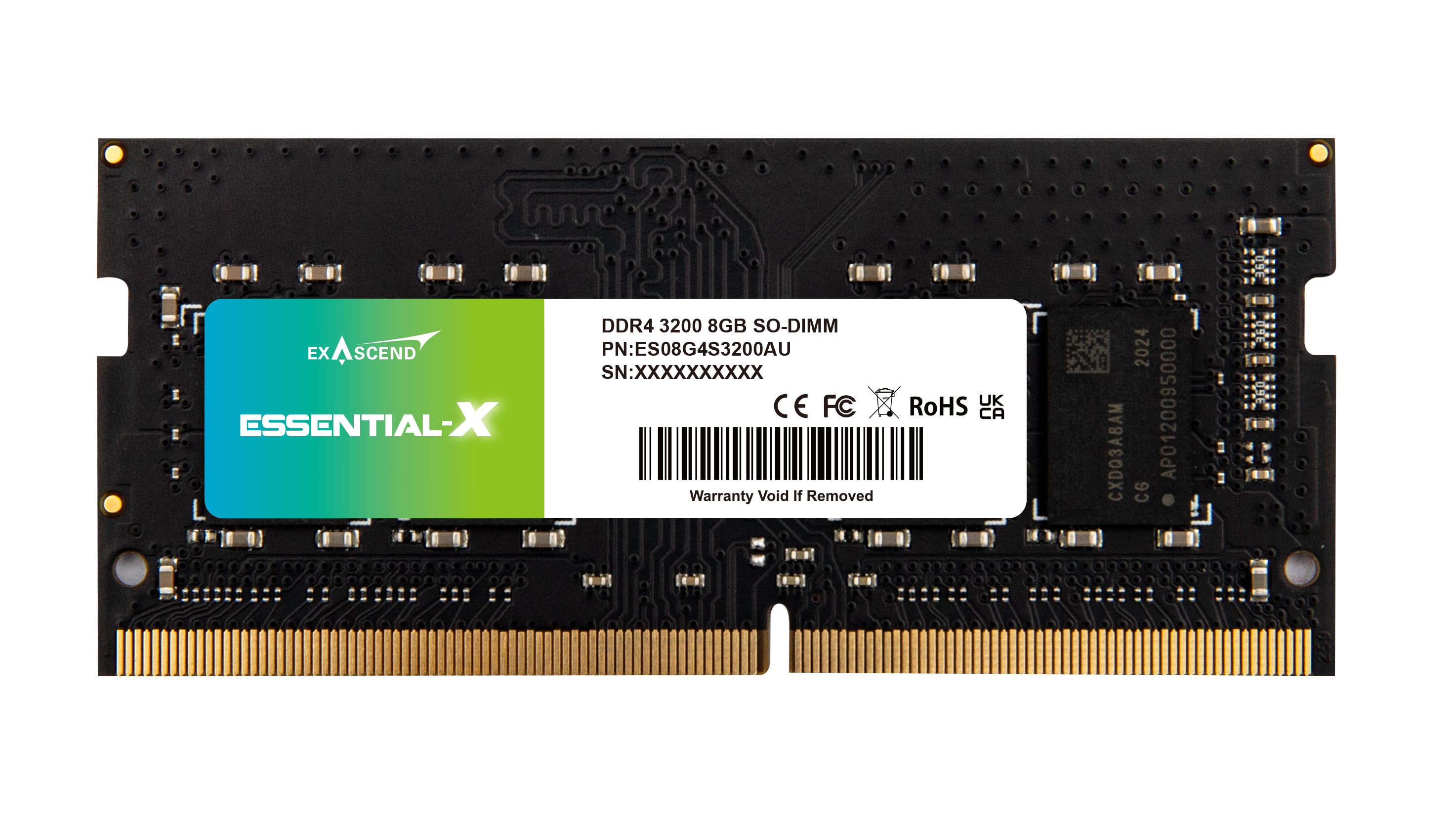

8GB Exascend Essential-X DDR4 SO-DIMM 3200MT/s
€104.13 excl. BTW
delivery time: contact us
12 days or more
truebase-theme.detail.tabsDescription
The Exascend Essential-X 8GB DDR4 SO-DIMM is an unbuffered memory module (Small Outline Dual In-Line Memory Module) that you use as main memory in laptops, mobile PCs and micro-servers, among others. With 8GB you have enough memory for everyday office work and browsing.
The module runs at 3200MT/s (1600MHz clock) at the JEDEC standard voltage of 1.2V. It is built from DDR4 SDRAM chips in FBGA packages on a 260-pin printed circuit board and has a 4Kbit serial EEPROM for SPD. The module also supports on-die termination (ODT), a bi-directional differential data strobe, 8-bit prefetch and asynchronous reset. The module is RoHS compliant.
Specifications
- Capacity: 8GB
- Type: DDR4 SDRAM, unbuffered
- Form factor: SO-DIMM, 260-pin
- Speed: 3200MT/s (1600MHz clock)
- Voltage: 1.2V ± 0.06V (VDDQ 1.2V)
- Chip package: FBGA
- SPD: 4Kbit serial EEPROM
- Features: on-die termination (ODT), bi-directional differential data strobe, 8-bit prefetch, asynchronous reset
- Operating temperature: 0 to 85 °C (DRAM case temperature)
- Environmental: RoHS compliant
Specifications
- Kind of accessoire: RAM module
- Memory module: SO-DIMM
- Voltage: 1.2 V
- Capacity: 8GB
- Type of memory: DDR4
- SKU: ES08G4S3200AU
- EAN: 6972904954007
Dimensions and weight
- Length: 69.6
- Height: 1.2
- Width: 30
- Weight: 0.023
