4GB Exascend Essential-X DDR4 U-DIMM 3200MT/s
€49.59 excl. BTW
delivery time: contact us
12 days or more
truebase-theme.detail.tabsDescription

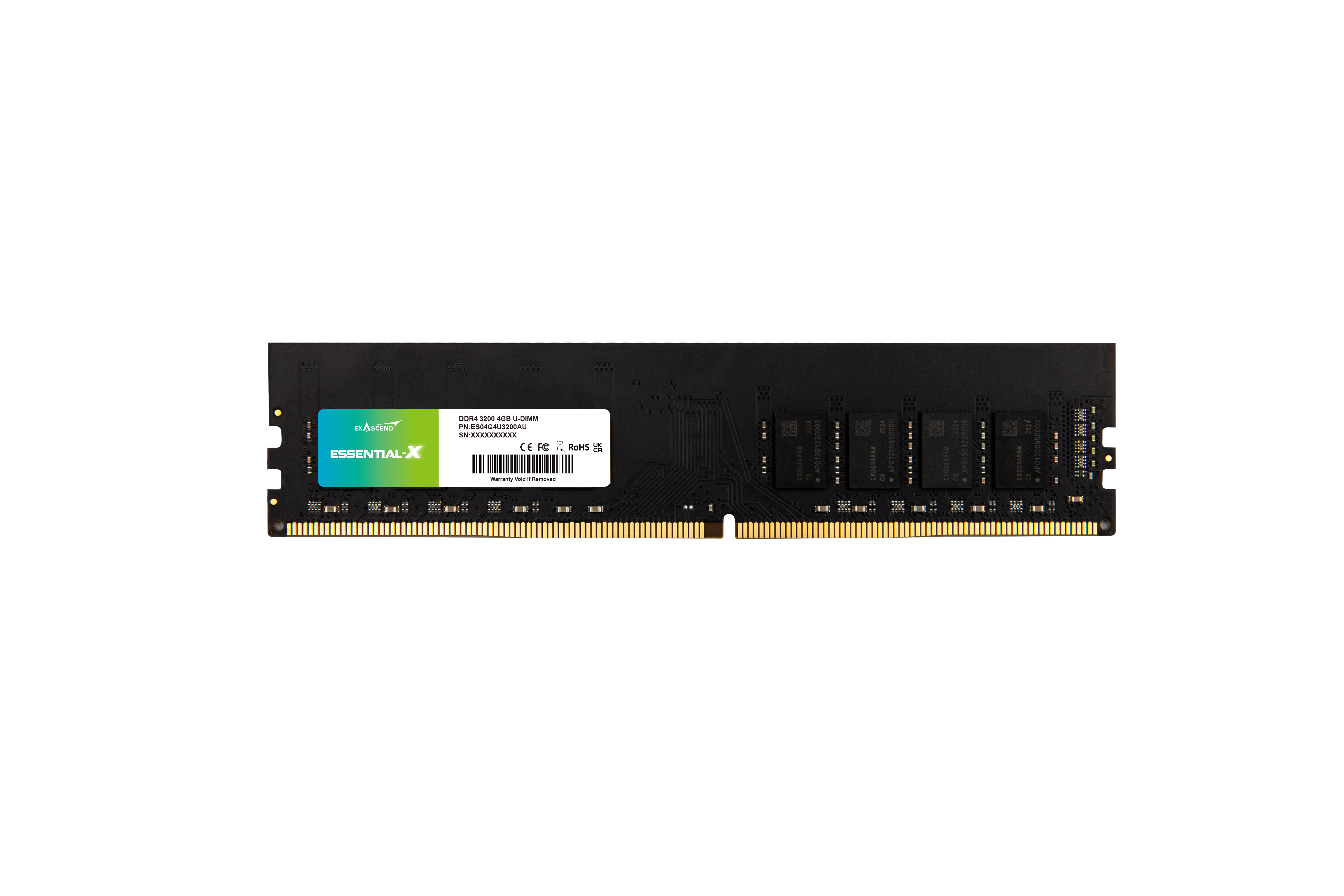

The 4GB Exascend Essential-X DDR4 U-DIMM is an unbuffered long DIMM (U-DIMM) for use as main memory in desktops, PCs and servers, among others. 4GB suits systems running basic tasks, such as office work, or supplementing existing memory.
The module runs at 3200MT/s (1600MHz clock) and at the JEDEC standard voltage of 1.2V. It is built with DDR4 SDRAM in FBGA packages on a 288-pin printed circuit board and has a 4Kbit serial EEPROM for SPD. The module also supports on-die termination (ODT), a bi-directional differential data strobe, 8-bit prefetch and asynchronous reset. The module is RoHS compliant.
Specifications
- Capacity: 4GB
- Type: DDR4 SDRAM, unbuffered
- Form factor: U-DIMM, 288-pin
- Speed: 3200MT/s (1600MHz clock)
- Voltage: 1.2V ± 0.06V (VDDQ 1.2V)
- Chip package: FBGA
- SPD: 4Kbit serial EEPROM
- Features: ODT, bi-directional differential data strobe, 8-bit prefetch, asynchronous reset
- Operating temperature: 0 to 85 °C (DRAM case temperature)
- Environmental: RoHS compliant
Specifications
- Kind of accessoire: RAM module
- Memory module: DIMM
- Voltage: 1.2 V
- Capacity: 4GB
- Type of memory: DDR4
- SKU: ES04G4U3200AU
- EAN: 6972904954038
Dimensions and weight
- Length: 133.4
- Height: 1.4
- Width: 31.3
- Weight: 0.033
