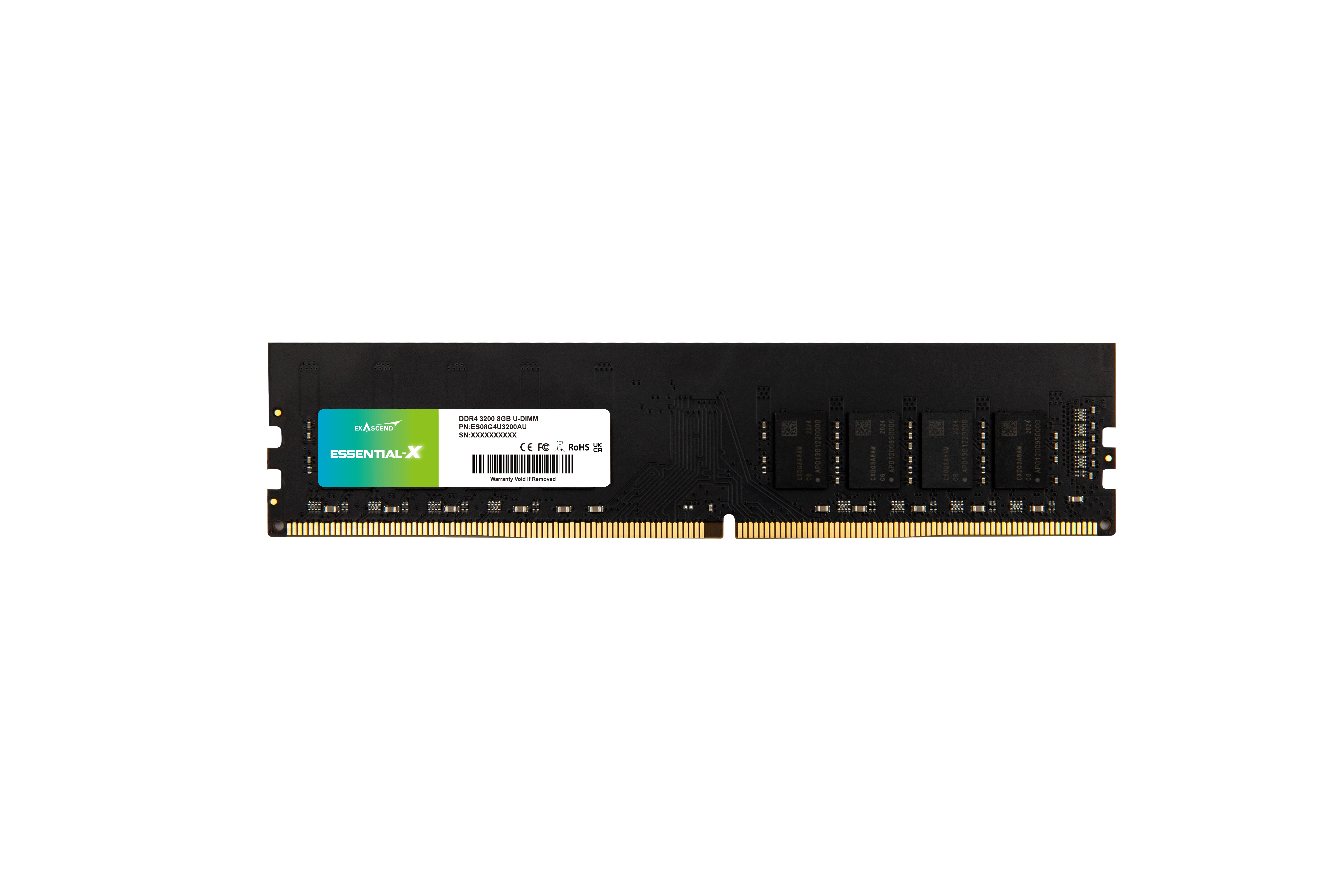

8GB Exascend Essential-X DDR4 U-DIMM 3200MT/s
€106.61 excl. BTW
delivery time: contact us
12 days or more
truebase-theme.detail.tabsDescription
The 8GB Exascend Essential-X DDR4 U-DIMM is an unbuffered long DIMM (U-DIMM) for use as main memory in desktops, PCs and servers, among others. 8GB is a common choice for everyday use on desktops and workstations.
The module runs at 3200MT/s (1600MHz clock) and at the JEDEC standard voltage of 1.2V. It is built with DDR4 SDRAM in FBGA packages on a 288-pin printed circuit board and has a 4Kbit serial EEPROM for SPD. The module also supports on-die termination (ODT), a bi-directional differential data strobe, 8-bit prefetch and asynchronous reset. The module is RoHS compliant.
Specifications
- Capacity: 8GB
- Type: DDR4 SDRAM, unbuffered
- Form factor: U-DIMM, 288-pin
- Speed: 3200MT/s (1600MHz clock)
- Voltage: 1.2V ± 0.06V (VDDQ 1.2V)
- Chip package: FBGA
- SPD: 4Kbit serial EEPROM
- Features: ODT, bi-directional differential data strobe, 8-bit prefetch, asynchronous reset
- Operating temperature: 0 to 85 °C (DRAM case temperature)
- Environmental: RoHS compliant
Specifications
- Kind of accessoire: RAM module
- Memory module: DIMM
- Voltage: 1.2 V
- Capacity: 8GB
- Type of memory: DDR4
- SKU: ES08G4U3200AU
- EAN: 6972904954045
Dimensions and weight
- Length: 133.4
- Height: 1.4
- Width: 31.3
- Weight: 0.033
